50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame

    Buy cheap 50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame from wholesalers

    Buy cheap 50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame from wholesalers
    • Buy cheap 50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame from wholesalers
    • Buy cheap 50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame from wholesalers

    50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame

    Ask Lasest Price
    Brand Name : Geling
    Model Number : 65-094
    Price : USD70-85/Square Meter(Negotiable)
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 Square Meters/20days
    Delivery Time : Within 15 days
    • Product Details
    • Company Profile

    50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame

    65mm Low Price Board Aluminum Frame Movable Foldable Wood Partition Wall For Kenya​:

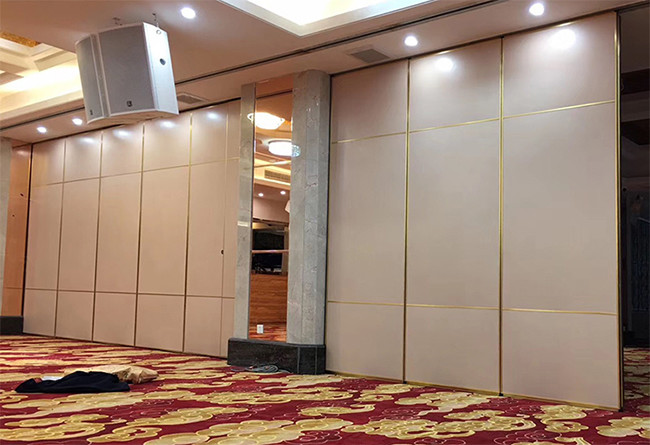

    The movable wall system is working as room divider and used to seperate the big space into different areas.

    Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish.

    All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl.

    Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 50dB.


    Product General Information:


    Item No.Panel's SurfaceSoundproof
    Factor(db)
    Partition Load-bearing(KG)THK
    (mm)
    Width
    (mm)
    Height
    (mm)
    N.W
    (kg/
    )
    65-001MDF Board
    (no melamine paper)
    3632065900-12302000/380022
    65-002Plywood Board3632065900-12302000/380022
    65-003MDF Board3632065900-12302000/380022
    65-004Fireproof Board3832065900-12302000/380028
    65-005

    Leather/Fabric

    Hard Cushion

    3832065900-12302000/380028
    65-006Leather/Fabric Hard Cushion (cover the edge)4032095900-12302000/380038
    65-007Leather/Fabric Soft Cushion (cover the edge)4032095900-12302000/380038

    50dB 65mm Board Foldable Wood Partition Wall Aluminum Frame


    Product Features:


    Feature

    Why?

    Without ground track

    No need ground track, keep floor intact, Only need top hanger system;

    High-efficient fire prevention

    Use highly efficient fireproof material, good fireproof performance;

    Elegant appearance

    Many seletion of surface decoration, can make a unified indoor decoration;

    Sound insulation

    The soundproof is good performance, the best sound insulation rate can reach 55db;

    Retractable and flexible

    Partition panel can easy to control, only one person can finish the whole process of fix up partition;

    Stable and safe

    After with upper and lower telescopic pressure device, make the partition stable and secure and not easy to swing;

    Easy storage

    When not need the partitions, panels can be hidden in a dedicated storage cabinet, does not affect the overall appearance;

    Energy-saving insulation

    Excellent thermal insulation properties, according to the different attendance rate, the large is divided into a small space to reduce air conditioning power consumption;


    Product Installation:


    We will provide you a exactly and detailed installation steps according to your project, and provide the reference video, it is very easy to install.


    Product Sealing:


    Foldable Partition Wall is the upgrade version of the economic type, this premium product is suitable to those high-end projects which require higher quality standard, the upgrade version provide not only the quality, but also the advanced design and functions, compare to the economic version, it has more applications.


    1. Horizontal Seals:
    Upgrade version of retractable seal, the special casting mold ensure that the sealing strip will not come out easily, provide a better sound insulation performance.
    2. Corner Seals:
    Special design connection buffer, this buffer connects two components through an embedded system, ensure no sound is leaking from here.
    3. Vertical Seal:

    Upgrade version of aluminum profile joint, special mold for the sealing strip ensure the high quality of sound insulation.
    4. Magnetic Strip:
    Apart from the rubber sealing strip, there is magnetic strips embedded inside the joint to make the contact more easy and tight.
    5. Surface Boards:
    The raw finish can be covered with all kinds of materials for decoration.
    6. Insulation Material:
    The insulation materials can be embedded inside according to different requirements.
    7. Operating Key and Mechanism:
    Special design key, very easy to operate. The new type of jack mechanism instead of one-time trigger spring mechanism in the normal partition, providing a stable force to those retractable seal, increasing the sound insulation performance and durability.
    8. Reinforced Frame:
    Reinforced galvanized steel structure, supporting the full panel, panel will not bent even if it’s very high.
    9. Track System:
    Patented design, no need any lubrication, more durable.


    Why Choose Us?


    1. Factory direct offering and sending;
    2. Nice quality;
    3. Quick shipping with 5-15 days;
    4. Small order is welcome;
    5. More than 5 years warranty;
    6. Support customer designs and OEM ODM service;

    7. About 15 years professional producing experience in parttition wall area;

    8. Providing targeted installation plan or dispatch professional installor for on-site installation;


    Product Parking Types:



    Main Accessories and Aluminum Material:



    Steel Structure:


    There are three kinds of steel structures, the steel structure is located between ceiling and cement roof, Its function is to connect the partition wall.
    1. We only provide the PARTITION WALL, ACCESSORIES and TRACKS;
    2. You can buy the steel angle iron in local market and weld the STEEL STRUCTURE according to your actual situation.
    3. If you could not buy the steel iron in your market, please send us the height data from ceiling to cement roof, we can provide the steel irons according to your data, and then you can weld the STEEL STRUCTURE at building site.
