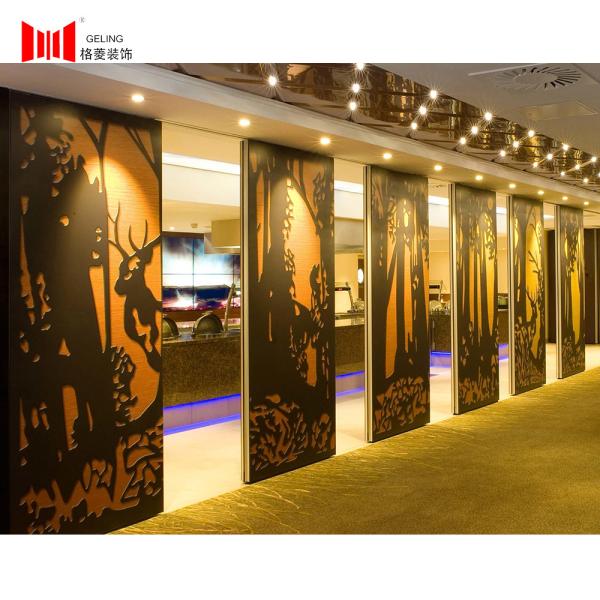

Luxury MDF Board 65mm Sliding Soundproof Wall Divider Panels For Hotel

Ask Lasest Price
Brand Name :	Geling
Model Number :	65-149
Price :	USD90/Square Meter
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	500 Square Meters/20days
Delivery Time :	Within 15 days

Add to Cart

Product Details
Company Profile

Luxury MDF Board 65mm Sliding Soundproof Wall Divider Panels For Hotel

Luxury 65mm Soundproof Acoustic Sliding Folding Partition Wall Divider For Hotel:

Product Description:

1. Thickness: 65mm (if add the cushion on the surface, the thickness is 95mm.);

2. Surface: 12mm MDF board / fabric / leather;

3. Color is optional;

4. Frame is 6063-T6 aluminum alloy;

5. Inside Material: 50mm thickness PAR acoustic Absorption Fiberglass;

6. Size is customized according to actually request;

7. Using imported POM hanging wheels;

8. All the foladable wall will be hanged on the aluminum track;

9. Soundproof Factor is 38-45db;

Product Applications:

Application
Hotel	Hall	Mall	Home Office	Restaurant	Gym	Office Space	Meeting Room	Garage
Hospital	School	Gallery	Banquet Hall	Warehouse	Storage	Exhibition Hall	Convention Center	Dining

Product Features:

These products have three main features. First, they're ceiling mounted. Composed of multiple individual elements, they flow along with a horizontal track attached to the ceiling, assembled one after another completing the entire wall. There is no need for a floor track. Second, they come with a variety of basic finishes such as melamine, HPL, fabric, leather, wood veneer, etc. Third, they provide first-rate sound insulation. Their sound reduction levels range from Rw 30 dB to Rw 50 dB, where higher values represent the upper limit of Sound attenuation based on laboratory tests.

These product series are based on our sliding door tracks. By combining the series sliding door track with different hangers, brackets and fixing options, customers can use the complete set for different assemblies, be it in sliding doors or applications. So far, they are applied in many locations, including balconies, terraces, shops, bars, restaurants, swimming pools, fitness centers, hotels, sports centers, shopping malls, and financial institutions.

Product General Information:

Item No.	Panel's Surface	Soundproof Factor(db)	Partition Load-bearing(KG)	THK (mm)	Width (mm)	Height (mm)	N.W (kg/㎡)
65-001	MDF Board (no melamine paper)	36	320	65	900-1230	2000/3800	22
65-002	Plywood Board	36	320	65	900-1230	2000/3800	22
65-003	MDF Board	36	320	65	900-1230	2000/3800	22
65-004	Fireproof Board	38	320	65	900-1230	2000/3800	28
65-005	Leather/Fabric Hard Cushion	38	320	65	900-1230	2000/3800	28
65-006	Leather/Fabric Hard Cushion (cover the edge)	40	320	95	900-1230	2000/3800	38
65-007	Leather/Fabric Soft Cushion (cover the edge)	40	320	95	900-1230	2000/3800	38

Product Installation:

We will provide you a exactly and detailed installation steps according to your project, and provide the reference video, it is very easy to install.

Why Choose Us?

1. Factory direct offering and sending;
2. Nice quality;
3. Quick shipping with 5-15 days;
4. Small order is welcome;
5. More than 5 years warranty;
6. Support customer designs and OEM ODM service;

7. About 15 years professional producing experience in parttition wall area;

8. Providing targeted installation plan or dispatch professional installor for on-site installation;

Product Parking Types:

Main Accessories and Aluminum Material:

Steel Structure:

There are three kinds of steel structures, the steel structure is located between ceiling and cement roof, Its function is to connect the partition wall.
1. We only provide the PARTITION WALL, ACCESSORIES and TRACKS;
2. You can buy the steel angle iron in local market and weld the STEEL STRUCTURE according to your actual situation.
3. If you could not buy the steel iron in your market, please send us the height data from ceiling to cement roof, we can provide the steel irons according to your data, and then you can weld the STEEL STRUCTURE at building site.

Product Sealing:

Factory and Office Shows:

Luxury MDF Board 65mm Sliding Soundproof Wall Divider Panels For Hotel

Frequently Asked Questions:

Q1. Do you accept customization?
Yes, our all partition walls are customized.

Q2. Need we provide the technical information or drawings?
Yes, we need, this is important.

Q3. What is your warranty time?
5 years guarantee, include all parts and defects.

Q4. Can I have a sample order?
Yes, we welcome sample order to test and check quality, but the sample is not free.

Q5. How do you ship the samples and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. What about the leading time?
Generally speaking, the sample needs 3-5 days, production time needs 10-20 days.

Q7. Do you have any MOQ limit for partition wall order?
The MOQ is 5 square meters.

Q8. Is it OK to print my logo on packing?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q9:What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q10. How do you solve the installation problem?
We will provide targeted installation plan to let you know how to install;
If it is necessary, we will dispatch professional installer to your local install, but you side should be responsible for the cost of the air ticket and accommodation for the whole trip, and 120-200USD one person per day for instructions.
