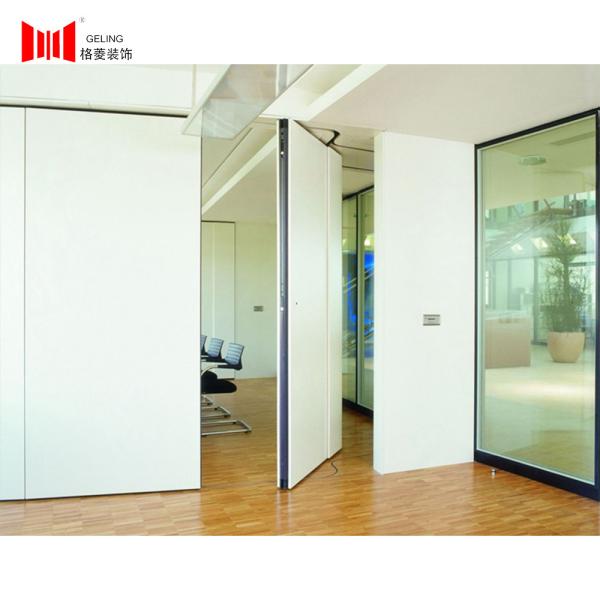

2000mm 3800mm Sliding Soundproof Wall Divider Panels Top Hung

Product Categories

Guangzhou Geling Decoration Engineering Co., Ltd.

Contact Now

2000mm 3800mm Sliding Soundproof Wall Divider Panels Top Hung

Ask Lasest Price
Brand Name :	Geling
Model Number :	65-068
Price :	USD132/Square Meter
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	500 Square Meters/20days
Delivery Time :	Within 15 days

Add to Cart

Product Details
Company Profile

2000mm 3800mm Sliding Soundproof Wall Divider Panels Top Hung

Customized Aluminum Acoustic Soundproof Movable Office Partition Wall Panel:

Product Description:

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 900mm-1230mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or Double Roller
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Product Applications:

Application
Hotel	Hall	Mall	Home Office	Restaurant	Gym	Office Space	Meeting Room	Garage
Hospital	School	Gallery	Banquet Hall	Warehouse	Storage	Exhibition Hall	Convention Center	Dining

2000mm 3800mm Sliding Soundproof Wall Divider Panels Top Hung

Soundproof Partition Wall Details:

With the unique multi-layer panel system, our soundproof partition wall has excellent soundproof performance with a STC up to 22-55 dB.

Double PVC seals are mounted around the soundproof partition wall to provide the highest level of soundproof integrity. More importantly, this fit can also achieve the desired soundproof integrity between two nearby rooms.

The soundproof structure includes multi-layer board at the top and bottom of the soundproof partition wall and the glass wool inside. The soundproof performance is up to 40 STC, and the fabric wrapped soundproof panel and perforated MDF panel can be used to reduce echo. The vinyl at all edges help to prolong life time and seal the noise.

These soundproof partition walls will be provided in an end-folded configuration to meet a variety of parking requirements and the first panel can be provided as a standard access door.

The soundproof partition wall has aluminum profiles, and panels are available for a variety of surface treatments including painted, polished veneer or various standard or high pressure laminate. Fire rated finish panel is also available.

Product General Information:

Item No.	Panel's Surface	Soundproof Factor(db)	Partition Load-bearing(KG)	THK (mm)	Width (mm)	Height (mm)	N.W (kg/㎡)
65-001	MDF Board (no melamine paper)	36	320	65	900-1230	2000/3800	22
65-002	Plywood Board	36	320	65	900-1230	2000/3800	22
65-003	MDF Board	36	320	65	900-1230	2000/3800	22
65-004	Fireproof Board	38	320	65	900-1230	2000/3800	28
65-005	Leather/Fabric Hard Cushion	38	320	65	900-1230	2000/3800	28
65-006	Leather/Fabric Hard Cushion (cover the edge)	40	320	95	900-1230	2000/3800	38
65-007	Leather/Fabric Soft Cushion (cover the edge)	40	320	95	900-1230	2000/3800	38

Product Installation:

We will provide you a exactly and detailed installation steps according to your project, and provide the reference video, it is very easy to install.

Why Choose Us?

1. Factory direct offering and sending;
2. Nice quality;
3. Quick shipping with 5-15 days;
4. Small order is welcome;
5. More than 5 years warranty;
6. Support customer designs and OEM ODM service;

7. About 15 years professional producing experience in parttition wall area;

8. Providing targeted installation plan or dispatch professional installor for on-site installation;

Product Parking Types:

Main Accessories and Aluminum Material:

Steel Structure:

There are three kinds of steel structures, the steel structure is located between ceiling and cement roof, Its function is to connect the partition wall.
1. We only provide the PARTITION WALL, ACCESSORIES and TRACKS;
2. You can buy the steel angle iron in local market and weld the STEEL STRUCTURE according to your actual situation.
3. If you could not buy the steel iron in your market, please send us the height data from ceiling to cement roof, we can provide the steel irons according to your data, and then you can weld the STEEL STRUCTURE at building site.

Product Sealing:

Frequently Asked Questions:

Q1. Do you accept customization?
Yes, our all partition walls are customized.

Q2. Need we provide the technical information or drawings?
Yes, we need, this is important.

Q3. What is your warranty time?
5 years guarantee, include all parts and defects.

Q4. Can I have a sample order?
Yes, we welcome sample order to test and check quality, but the sample is not free.

Q5. How do you ship the samples and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. What about the leading time?
Generally speaking, the sample needs 3-5 days, production time needs 10-20 days.

Q7. Do you have any MOQ limit for partition wall order?
The MOQ is 5 square meters.

Q8. Is it OK to print my logo on packing?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q9:What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q10. How do you solve the installation problem?
We will provide targeted installation plan to let you know how to install;
If it is necessary, we will dispatch professional installer to your local install, but you side should be responsible for the cost of the air ticket and accommodation for the whole trip, and 120-200USD one person per day for instructions.
