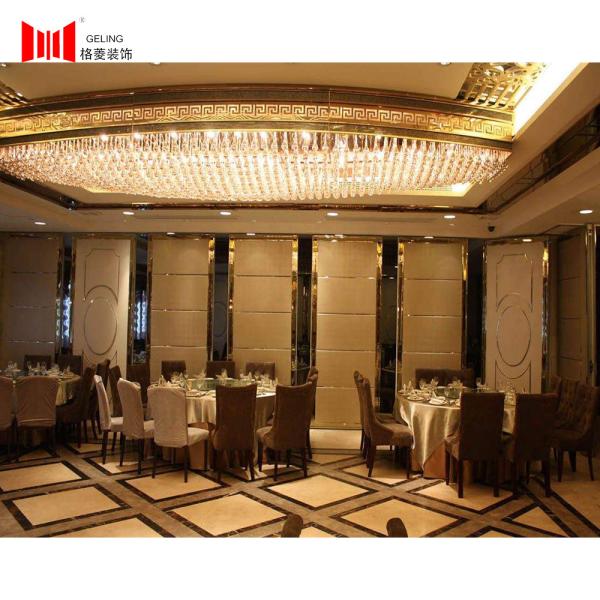

Gold Edge Fabric Surface Soundproof Movable Operable Partition Wall
For Hotel:
Panel Suspension | Top hunge system without the need for a floor track. |
Panel Width | Each panel 900mm-1230mm. |
Hanging Track | Aluminum OR Steel Track |
Roller on panel | Single or Double Roller |
Panel Frame | Heavy-duty steel-gusseted aluminum inner frames reinforced with
full height. |
Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved
and locked. |
Module | 700mm - 1200mm maximum. |
Panel Stacking | Numerous panel stacking options for complete flexibility. |
Panel Face | MDF,Plywood, woven fabric, Leather,Natural wood veneer,
Melamine,Wood moldings, etc. |
Aluminum edge finish | Satin anodised or polyester powder coating to all exposed aluminium
components available in a wide range of colours as standard. |
Product Description:
1. Thickness: 95mm;
2. Surface: fabric soft cushion;
3. Color is optional;
4. Frame is 6063-T6 aluminum alloy;
5. Inside Material: 50mm thickness PAR acoustic Absorption
Fiberglass;
6. Size is customized according to actually request;
7. Using imported POM hanging wheels;
8. All the foladable wall will be hanged on the aluminum track;
9. Soundproof Factor is 38-45db;
Product Applications:
Application |
Hotel | Hall | Mall | Home Office | Restaurant | Gym | Office Space | Meeting Room | Garage |
Hospital | School | Gallery | Banquet Hall | Warehouse | Storage | Exhibition Hall | Convention Center | Dining |
Product General Information:
| Item No. | Panel's Surface | Soundproof
Factor(db) | Partition Load-bearing(KG) | THK
(mm) | Width
(mm) | Height
(mm) | N.W
(kg/㎡) |
| 65-001 | MDF Board
(no melamine paper) | 36 | 320 | 65 | 900-1230 | 2000/3800 | 22 |
| 65-002 | Plywood Board | 36 | 320 | 65 | 900-1230 | 2000/3800 | 22 |
| 65-003 | MDF Board | 36 | 320 | 65 | 900-1230 | 2000/3800 | 22 |
| 65-004 | Fireproof Board | 38 | 320 | 65 | 900-1230 | 2000/3800 | 28 |
| 65-005 | Leather/Fabric Hard Cushion | 38 | 320 | 65 | 900-1230 | 2000/3800 | 28 |
| 65-006 | Leather/Fabric Hard Cushion (cover the edge) | 40 | 320 | 95 | 900-1230 | 2000/3800 | 38 |
| 65-007 | Leather/Fabric Soft Cushion (cover the edge) | 40 | 320 | 95 | 900-1230 | 2000/3800 | 38 |
Product Installation:
We will provide you a exactly and detailed installation steps
according to your project, and provide the reference video, it is
very easy to install. |
Why Choose Us?
1. Factory direct offering and sending;
2. Nice quality;
3. Quick shipping with 5-15 days;
4. Small order is welcome;
5. More than 5 years warranty;
6. Support customer designs and OEM ODM service;
7. About 15 years professional producing experience in parttition
wall area;
8. Providing targeted installation plan or dispatch professional
installor for on-site installation;
Product Parking Types:
Main Accessories and Aluminum Material:
Steel Structure:
There are three kinds of steel structures, the steel structure is
located between ceiling and cement roof, Its function is to connect
the partition wall.
1. We only provide the PARTITION WALL, ACCESSORIES and TRACKS;
2. You can buy the steel angle iron in local market and weld the
STEEL STRUCTURE according to your actual situation.
3. If you could not buy the steel iron in your market, please send
us the height data from ceiling to cement roof, we can provide the
steel irons according to your data, and then you can weld the STEEL
STRUCTURE at building site. |
Product Sealing:
Frequently Asked Questions:
Q1. Do you accept customization?
Yes, our all partition walls are customized.
Q2. Need we provide the technical information or drawings?
Yes, we need, this is important.
Q3. What is your warranty time?
5 years guarantee, include all parts and defects.
Q4. Can I have a sample order?
Yes, we welcome sample order to test and check quality, but the
sample is not free.
Q5. How do you ship the samples and how long does it take to
arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q6. What about the leading time?
Generally speaking, the sample needs 3-5 days, production time
needs 10-20 days.
Q7. Do you have any MOQ limit for partition wall order?
The MOQ is 5 square meters.
Q8. Is it OK to print my logo on packing?
Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q9:What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q10. How do you solve the installation problem?
We will provide targeted installation plan to let you know how to
install;
If it is necessary, we will dispatch professional installer to your
local install, but you side should be responsible for the cost of
the air ticket and accommodation for the whole trip, and 120-200USD
one person per day for instructions. |
